For custom integrators, the subwoofer has evolved from an “obtrusive black box” into a sophisticated architectural element that also can move massive amounts of air from increasingly smaller or entirely hidden footprints. This roundup explores the latest subwoofers that bridge the gap between audiophile-grade performance and the requirements of luxury design.

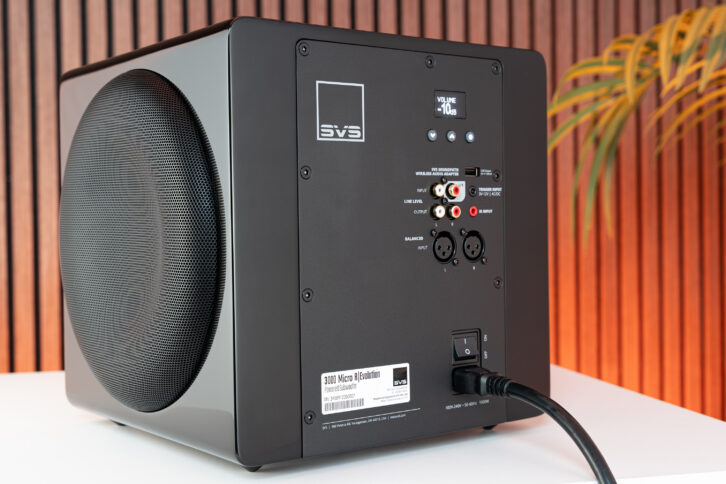

SVS 3000 Micro R|Evolution
The SVS 3000 Micro R|Evolution marries exclusive driver design, the SVS R|Evolution amplifier platform, and DSP power to deliver performance that outclasses larger models. The beating heart of the 3000 Micro R|Evolution is a pair of active, side-firing 9-inch high-excursion drivers custom-built by the SVS design team to maximize output from a small enclosure. The drivers operate in unison, acoustically and electrically in parallel, to generate controlled low frequencies. By firing in opposite directions, mechanical forces are canceled, creating a sonically inert cabinet and eliminating unwanted vibration, one of the biggest limitations of compact subwoofers. Each high-excursion active 9-inch driver employs a progressive inverted surround to ensure maximum linear displacement.

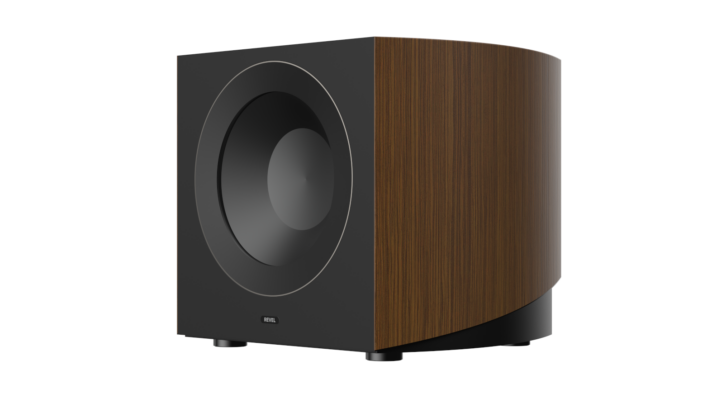

Revel B140
The Revel Performa4 Series B140 powered subwoofer is the ideal companion to any Performa4 system, featuring a 10-inch (250mm) fiber-composite cone woofer driven by a 750-watt RMS/1500-watt peak Class D amplifier for deep bass to 26 Hz. Rear-mounted controls include a variable low-pass filter (50–150 Hz), LFE input, phase control, volume, and auto on/off. Revel’s patented Constant Pressure Gradient rear port eliminates turbulence for pristine, distortion-free bass.

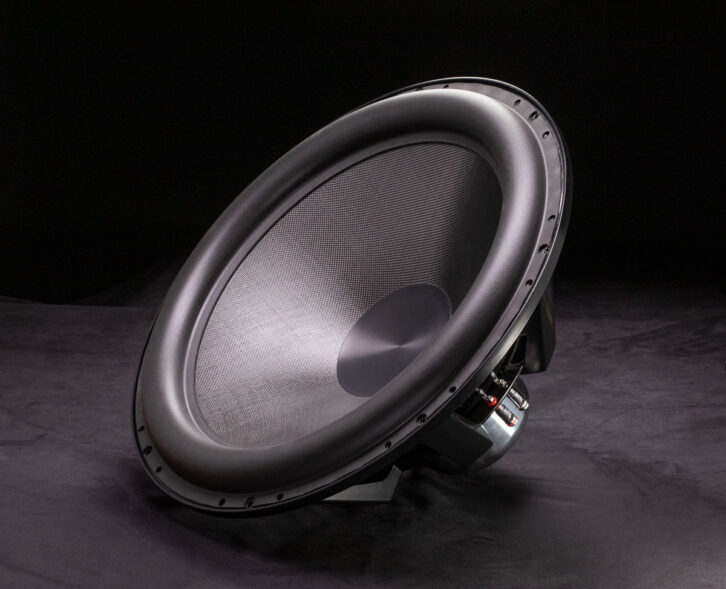

HYPERSUB F-24 DUO
HYPERSUB expands the Frontier line with the F-24 DUO, a force-canceling, dual-opposed 24-inch infinite-baffle subwoofer module engineered to deliver cinema-scale infrasonic low frequencies, while disappearing into risers, baffle walls, or other structural cavities. Hand-built in Canada and powered by the dedicated HYPERSUB 224D/C rack amplifier (2 × 2400 watts RMS with installer-tunable DSP), the F-24 DUO extends system capability for large and very large rooms and integrates with HYPERSUB F-15 and F-21 arrays for reference-grade, RP-22-aligned performance. The F-24 DUO’s dual 24-inch, long-throw neodymium drivers operate in a force-canceling manifold that minimizes cabinet reaction forces while maximizing acoustic output. The module is optimized for infinite-baffle installs and is sized for discreet architectural integration. The manifold fits a standard 20-inch × 30-inch HVAC grille for stealthy placement behind fabric walls or within seating risers.

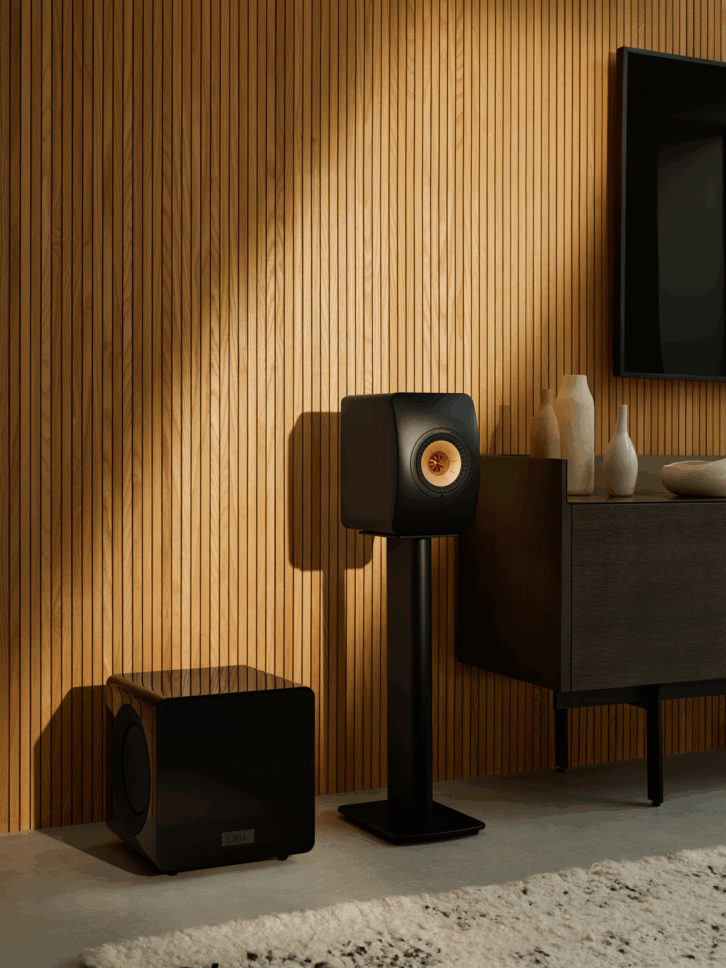

KEF KC92
The KEF KC92 Subwoofer features the company’s proprietary digital signal processing algorithm, the Music Integrity Engine (MIE). The KC92 also features two 9-inch drivers, derived from KEF’s flagship Blade HiFi Speaker, and has a five-preset Room Placement Equalization function that ensures consistent performance no matter where the subwoofer is placed. The two drivers in the KC92 are positioned back-to-back in a force-cancelling configuration. This design neutralizes out reactive forces, minimizing cabinet vibration and maximizing accuracy and detail. This configuration enables an immense volume capacity, facilitating sound pressure levels of 110 dB from a compact, sealed cabinet.
Triad Cinema and Slim
Triad’s Cinema subwoofers feature front wiring, secure mounts, built-in handles, and rubber isolation bumpers to minimize vibration. High-current binding posts ensure reliable performance even in demanding, high-output applications.
Triad’s Slim Subwoofers, including InRoom, OnWall, and InWall models, deliver deep, controlled bass while saving space. Constructed with aluminum cones for reduced distortion and engineered to pair with Triad Subwoofer RackAmps for optimal performance, these subwoofers provide flexible, high-quality low-frequency solutions that can be customized with custom-colored grilles for InWall models and six predefined colorways or custom options for InRoom and OnWall models — all included in the price.

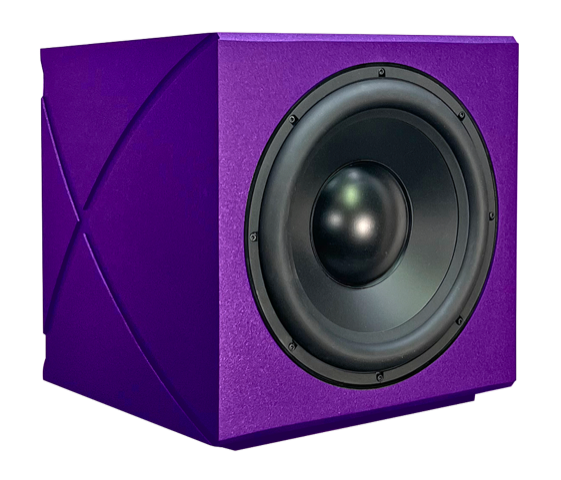

Phase Tech Power Lux DSP
Complementing the Premier Lux speakers, the Phase Tech Power Lux DSP subwoofers redefine low-frequency performance with DSP technology that enables precise control of the amplifier and driver. The Power Lux lineup includes four models: the PL-10S and PL-12S compact sealed subwoofers, as well as the PL-10P and PL-12P ported subwoofers. These models are designed to achieve deep, impactful bass as low as 17 Hz, and plays as loud as 123 dB. Each subwoofer features a 10- or 12-inch long-throw mica-graphite poly cone with NBR Surround and is powered by an integrated 900-watt peak amplifier.
PS Audio Foundry F12
PS Audio’s first-ever subwoofer — the Foundry F12 — is a ground-up design featuring a high-excursion 12-inch woofer, 1000 watts of built-in amplification, and advanced room mode correction technology that works in conjunction with PS Audio’s new Foundry control app. The PS Audio Foundry F12’s driver is a completely new design. It has a long throw — greater than 2-1/2 inches — with a large 10-inch graduated Nomex spider. The motor structure utilizes large magnets, dual shorting rings, and other elements to maintain a constant magnetic field throughout the driver’s excursion. The driver employs a paper cone with a carbon fiber dust cap, for high stiffness, low mass, and internal damping.

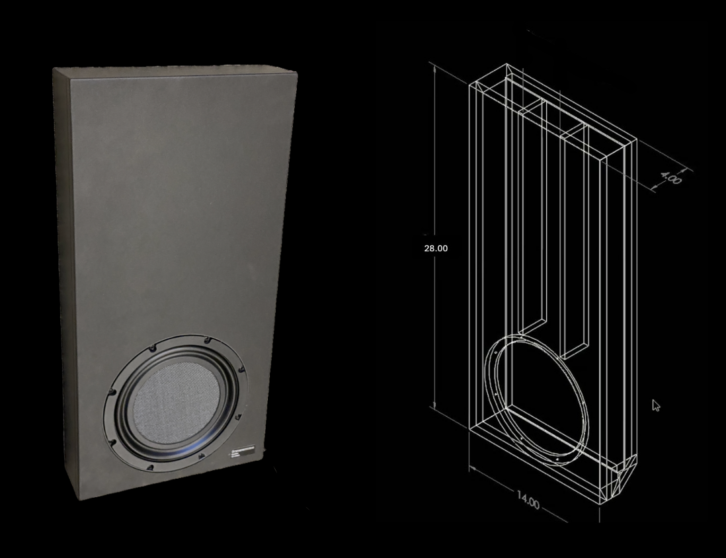

Grimani Systems Epsilon-S Slimline
The Grimani Systems Epsilon-S Slimline Subwoofer with an external DSP amplifier is designed for projects where aesthetics matter as much as performance. The Epsilon-S delivers the same reference-quality sound as the company’s other models, now in a sleek in-wall format. The Epsilon-S provides deep, “punchy” bass and the detail expected from Grimani Systems. Designed for luxury cinemas and media spaces, it blends invisibly into the architecture while delivering thunderous excitement.

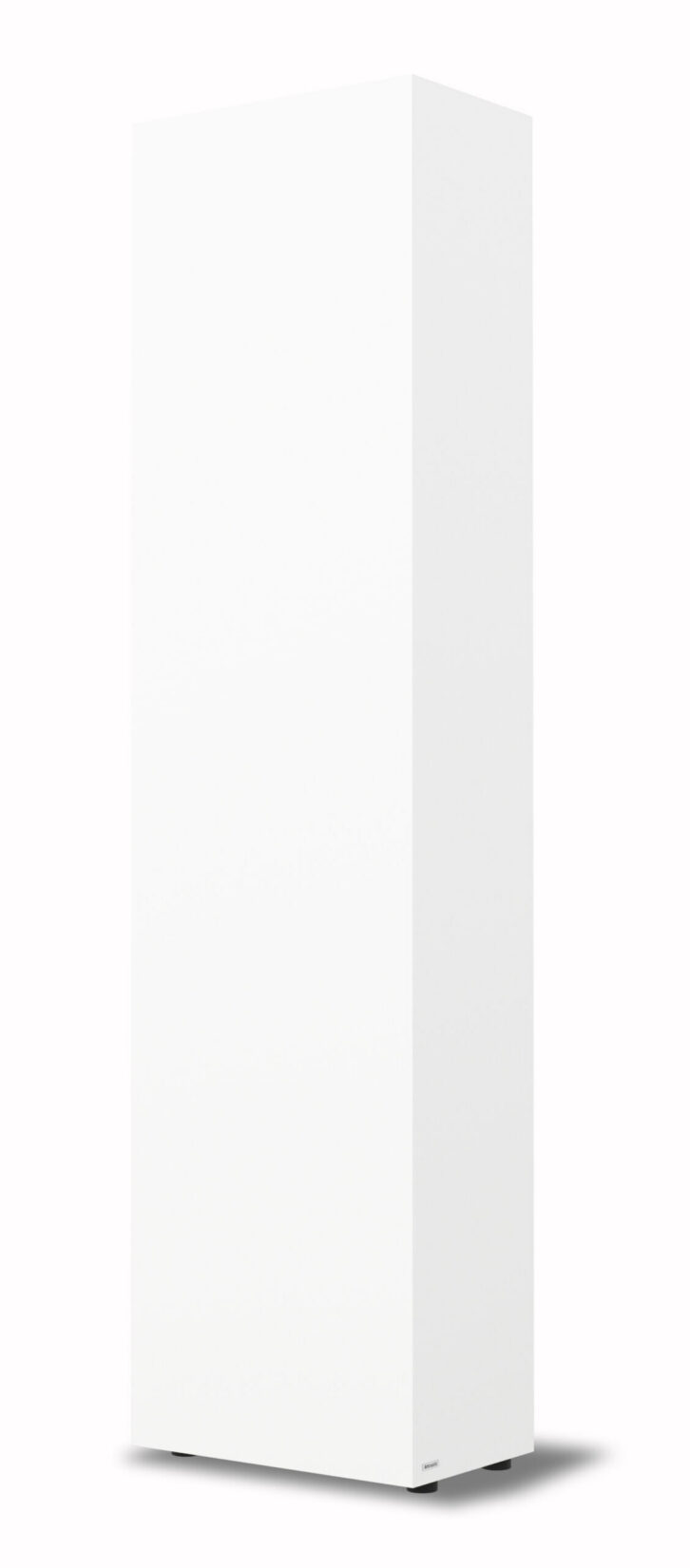

Artcoustic Sub 4-12 INFRA
Built around four in-house-designed 12-inch long-throw drivers and a precision 6th-order bandpass enclosure, the Artcoustic Sub 4-12 INFRA delivers true infrasonic performance, reaching below 20 Hz with control and accuracy. Rather than relying on a single oversized driver, Artcoustic engineered four 12-inch units to work together in phase alignment. Their combined cone area and excursion equal that of a 24-inch driver, but with significantly lower distortion, higher thermal headroom, and superior long-term reliability. The Sub 4-12 INFRA has been engineered for maximum flexibility, enabling it to be integrated into a wide range of applications. Its rigid enclosure and the driver layout make it suitable for multiple mounting orientations without compromising performance.

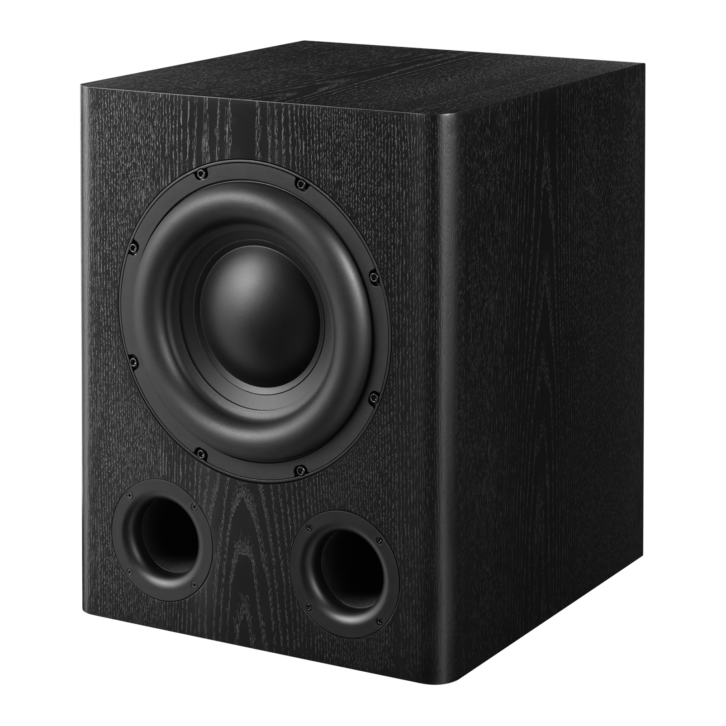

JBL Synthesis SSW-5
The JBL Synthesis SSW-5 is a powered subwoofer engineered for medium-to-large rooms and designed to complement the JBL Synthesis Custom Loudspeaker Series in reference-level home cinema and high-performance custom installations. At the heart of the SSW-5 is a front-firing 12-inch black pure-pulp cone woofer with a cast-frame chassis and a 4-inch voice coil, driven by a 1000-watt RMS amplifier. The bass-reflex enclosure uses dual front-firing tuned ports to maximize output and simplify placement in custom rooms where rear-port clearance is not always available. Frequency response extends to 24 Hz (-6dB) with the dynamic headroom expected of a Synthesis-grade product. For integrators, the SSW-5 is engineered to drop into JBL Synthesis-anchored systems. The rear panel includes dual RCA (unbalanced) and dual XLR (balanced) inputs, a variable crossover (50 to 150 Hz, 24 dB/octave) with selectable LFE bypass, level and polarity controls, single-band parametric EQ for room tuning, and auto-on power management.

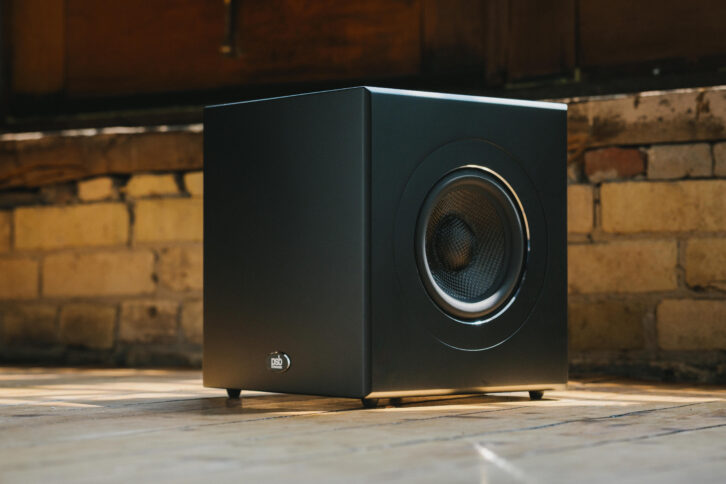

PSB Speakers BP7
PSB Speakers expands its SubSeries line with the BP7 powered subwoofer, a compact, high-performance design engineered for accuracy, control, and musical clarity. The BP7 combines a bipolar driver array, sealed cabinet, and 350-watt Class D amplifier to deliver deep, distortion-free low frequencies. The BP7’s bipolar driver array features two opposing 6.5-inch woven carbon-fiber woofers that work in alignment to minimize cabinet vibration and distortion. This configuration converts amplifier power directly into clean, controlled energy with depth and precision. Its sealed cabinet design eliminates the port noise and resonances often found in vented subwoofers, ensuring smooth, accurate response and consistent performance in virtually any room. Measuring just 10.6 × 11.4 × 10.6 inches, the BP7 is designed for spaces where performance and discretion are equally important.

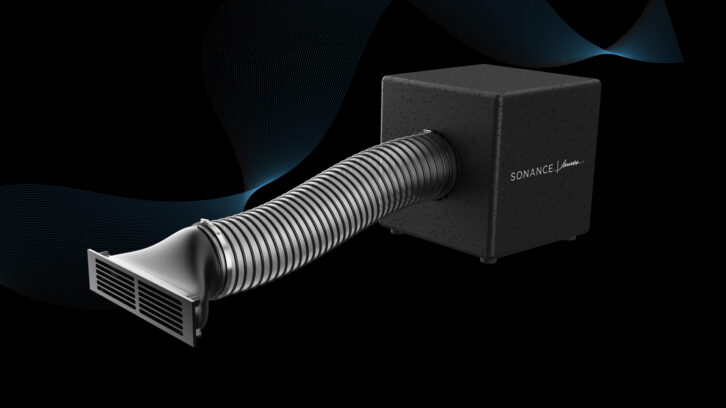

James PowerPipe X Series
Sonance’s James PowerPipe X Series is a completely reimagined lineup of hidden bass solutions designed to integrate into any architectural environment. The PowerPipe X Series includes eight models across four performance levels: PPX8/PPX8-M, PPX10/PPX10-M, PPX12/PPX12-M, and PPX15/PPX15-M, with both standard MDF and marine-rated options available for every model. The flagship PPX15 extends down to 29 Hz (–3 dB) with 88 dB sensitivity, while the compact PPX8 reaches 44 Hz with 85 dB sensitivity. This performance range allows integrators to match the appropriate model to specific applications, from background music and TV sound enhancement to full home theater installations.

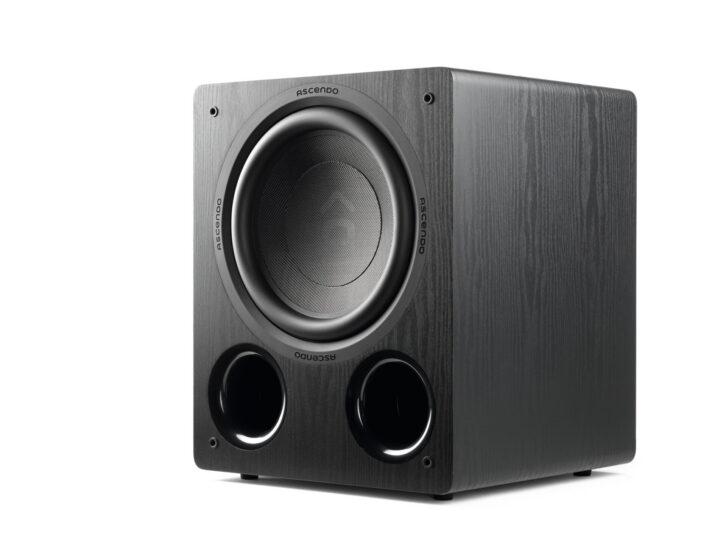

ASCENDO THE12 SUB and THE16 SUB Upgrades
The upgraded versions of ASCENDO’s THE12 SUB Active Vented and THE16 SUB Active Sealed subwoofers include upgraded SMPS power supplies that deliver more efficient, stable, and responsive power under dynamic load, improving reliability and tuning predictability in multi‑sub setups. They also include a 12V trigger input that syncs subwoofer power with the processor, simplifying automation and eliminating unnecessary manual switching. On the aesthetic front, there are two new matte vinyl finishes (Black & White).
