AVPro Edge Updates the MXnet Switch Lineup

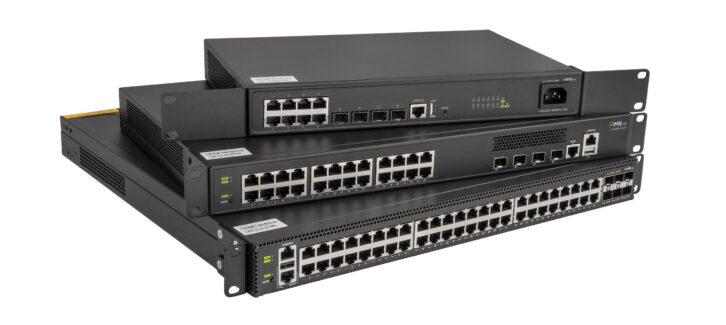

AVPro Edge has refreshed its best-selling MXnet 1G switches with the introduction of the MXnet P-Series. The P-Series is an evolution of the existing MXnet 1G switch lineup, purpose-built for large-scale MXnet 1G systems, delivering high-density PoE, scalable stacking, and zero licensing costs in a space-efficient 1RU rackmount form factor. As successors to the SW24 and SW48, the new P-Series switches bring the same stacking and uplinking capabilities, now with significantly more uplink bandwidth and at a better value. P-Series switches are designed for large residential, hospitality, and commercial installations, making them a go-to choice for integrators deploying high-fidelity AV-over-IP MXnet 1G systems. AVPro Edge MXnet P-Series switches are available in 24-port and 48-port configurations and come with a 10-year warranty.

AVPro Edge MXnet Preconfigured 48-Port
P-Series Network Switch

48× 10/100/1000Base-T PoE/PoE+ copper ports
6× 25G SFP28 uplink/stacking ports
Preconfigured for MXnet 1G V1/V2
IGMP Snooping, VLANs, and QoS support
Non-blocking for 1G (150G uplinks > 40.8G max 1G load)
396 Gbps switching capacity
740W PoE budget (ports 41–48 support PoE++ at 90W)
1RU rackmount form factor
Max 4 switch hops

AVPro Edge MXnet Preconfigured 24-Port
P-Series Network Switch

24× 10/100/1000Base-T PoE/PoE+ copper ports
4× 10G SFP+ uplink/stacking ports
Preconfigured for MXnet 1G V1/V2
IGMP Snooping, VLANs, and QoS support
Non-blocking for 1G (40G uplinks > 20.4G max 1G load)
128 Gbps switching capacity
370W PoE budget
1RU rackmount form factor
Max 4 switch hops

Available in 24-port and 48-port configurations, the MXnet E-Series switches come ready to deploy out of the box with no complex network setup required. E-Series switches can also serve as the backbone for Dante or AES67 networked audio systems while supporting single-switch MXnet 1G systems.

For more information, visit avproedge.com.
