Carl Tatz Design Announces New Subwoofer

The PhantomFocus PFM ICE Cube-12 is a professional reference studio subwoofer for use in audiophile applications.

Carl Tatz Design has announced a new high-performance professional reference studio subwoofer as part of its line of PhantomFocus Precision Monitoring Instruments. The PFM ICE Cube-12 Subwoofer anchors the foundational sonic footprint of the PhantomFocus System but can be used in any application where the audio professional demands the highest low-frequency performance with full 20 Hz frequency response and extremely tight and powerful dynamic pitch articulation. Two years in development, it is the first subwoofer to display the PFM moniker.

Carl Tatz Subwoofer

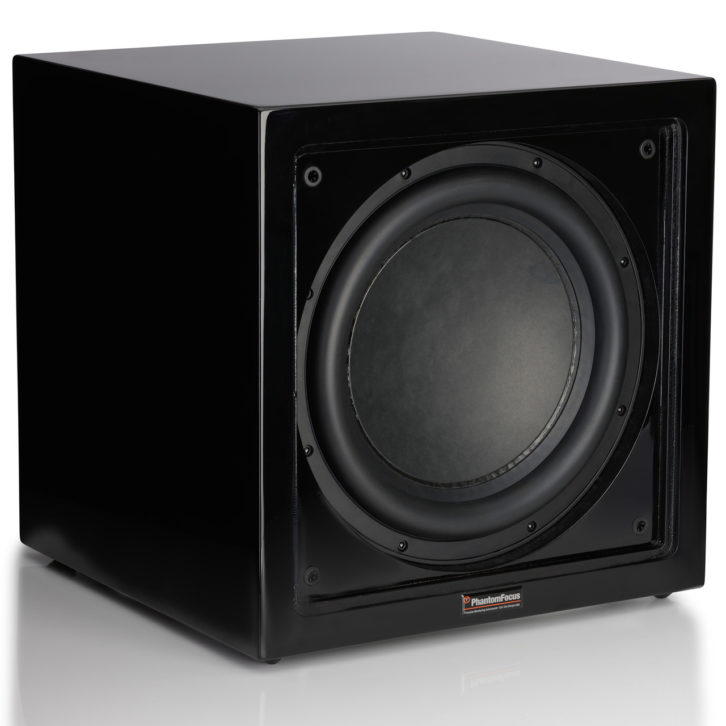

PhantomFocus PFM ICE Cube-12 Subwoofer

Designed with the ICE Power amplifier technology developed by Bang & Olufsen (B&O) of Denmark, the PFM ICE Cube-12Subwoofer renders both power on demand and virtually no wasted energy, all while running cool.

The 12-inch long-throw, audiophile grade paper-coned driver offers sonic authority and features a magnet motor structure and cast aluminum frame. Additionally, the simple design of the ICE Cube-12 subwoofer employs a DSP solution for crossover and driver control as well as maintaining a low distortion output by preventing signal overload. The strong cabinet is built with 3/4-inch medium-density fiberboard (MDF) that has been internally laminated with a 1/8-inch aluminum substrate bracing mechanism for ultra-rigidity.

The PFM ICE Cube-12 Dimensions are 15.75 inches x 15.75 inches x 15.75 inches (HWD) and weighs 55 lbs. (24.9476 kg), max continuous SPL 120 dB, 700 watts amp, low pass filter 40-140 Hz with LFE bypass, 0-180 phase switch, L&R Line Level RCA/PFS valanced XLR input, and studio black high gloss finish.
