PhaseTech Shows Variable Length Soundbar at ISE 2024

Soundbars are custom-made to fit the width and color of TV.

PhaseTech has launched its custom-length and color Variable Length Soundbars (VLS) —VLS70-LCR for TVs 60 to 70 inches and VLS100-LCR for TVs 75 to 100 inches. These made-to-order 3-channel soundbars are specially crafted to serve as left, center, and right channels, using three separate speakers in a complete surround system while aesthetically matching the video display width and color. Both the speaker and matching grille are customized to the specific television model provided by the ordering integrator. The VLS soundbar mounts to a TV bracket or directly to the wall.

Phase Tech VSL Soundbar

The VLS70-LCR and VLS100-LCR are now available globally and made to order based on the TV size and brand, typically shipping within a few days of ordering. For an optimal sound experience, PhaseTech recommends pairing them with the P3-35 3-Channel Dolby Digital Amplifier.

Key features of these soundbars include a .75-inch (19.1 mm) silk/synthetic soft dome tweeter, two 3-inch (76.2 mm) ultra-long throw polypropylene woofers with butyl rubber surrounds, and two 3-inch (762 mm) ultra-long throw polypropylene bass radiators with butyl rubber surrounds. Absolute Phase Crossover networks ensure precise synchronization of speaker drivers. Additionally, the VLS boasts a sleek design with a depth of only 2.875 inches (73.0 mm).

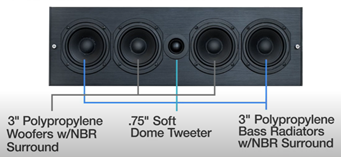

Phase Tech VSL Soundbar - Callouts

These soundbars feature a nominal impedance of 8 ohms, sensitivity of 90 dB @ 2.83V/1M, and a frequency response ranging from 65 Hz to 20 kHz. They are recommended to be powered within the range of 15–100 Watts. The enclosures are made of black extruded aluminum and feature a passive radiator design. Inputs are via Euroblock connector, and they come with cloth grilles. Color options include black, with custom colors available.

The dimensions of these soundbars are 6.75 inches (171.5 mm) H x 54-94 inch (1372-2388 mm) W x 2.88 inches (73.0 mm) D. The width varies between 54 to 66 inches for the VLS70-LCR and 67 to 94 inches for the VLS100-LCR. The VSL70-LCR weighs 22 lbs. (9.97 Kg) and the VSL100-LCR weighs in at 24 lbs. (10.88 Kg). Included accessories comprise a wall mount for easy installation, which involves mounting the bar to the wall, sliding the cabinets on, and then attaching the grille.

The VLS70-LCR and VLS100-LCR come with a limited ten-year warranty, ensuring long-term enjoyment of the audio investment.

 Visit PhaseTech at ISE 2024 at stand 7A150

For more information, visit phasetech.mseaudio.com.
