Lightapalooza 2024: DMF Lighting Announces Artafex

Shows new product line of indoor and outdoor solutions exclusive to the CI channel.

DMF Lighting has announced the launch of Artafex, the new product line of indoor and outdoor solutions exclusive to DMF’s CI channel integrators. Making its official debut at Lightapalooza 2024, Diamond Sponsor DMF Lighting is replacing the iX Series and DID Series for custom integrator modules with the Artafex line that now includes 2-inch and 4-inch modules, premium trims, flangeless housings, and select outdoor lighting options. The Artafex 2-inch line replaces the iX Series and the Artafex 4-inch line will complement the DID Series in the short term. Artafex modules will feature DMF’s premium color rendering technology, True Spectrum.

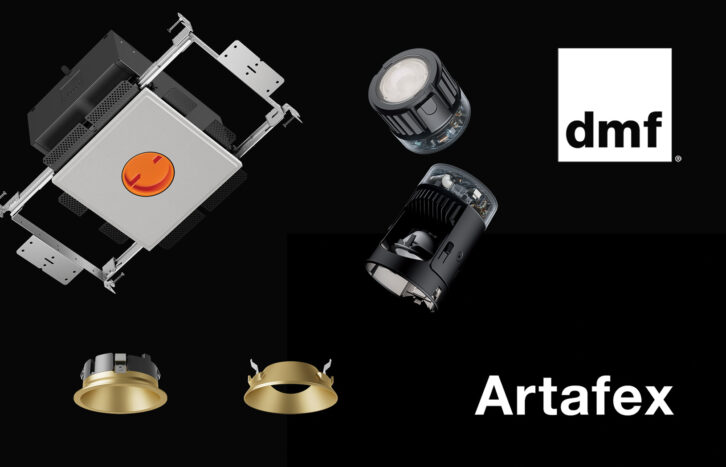

DMF Lighting Artafex

True Spectrum Technology

The True Spectrum technology for all Artafex line modules goes beyond the eight color samples that traditional Color Rendering Index (CRI) considers. True Spectrum considers the TM-30 system of measurement, which studies 99 variations of light that aren’t typically represented in CRI, to provide industry-leading color rendering and richness.

Artafex modules featuring True Spectrum will be available to order on the portal, effective February 28.

Introducing the Residential Lighting Best Practices Guide

New 2-Inch Optics and Hyperbolic and Pinhole Trims

The 2-inch Artafex modules will utilize new cross-beam TIR optics that are uniquely designed with two main features: light rays are focused at the trim opening and then diverge to cover the room. The center of the optic is recessed to reduce glare, and moving the focal area near the ceiling allows most of the light rays to pass through the small aperture of a pinhole trim. This produces high efficacy, maximum light output, and minimum clipping of the light. The new optics provide proper flood or ambient lighting and minimal glare for a comfortable living space, even with traditionally challenging pinhole trims.

DMF Lighting - Artafex - CrossBeam

Artafex premium trims are offered in Micro Flange and Flangeless options. They feature premium materials, finishes, and performance. The brass trims are machined from solid blocks of brass 360 billet and, in addition to providing a beautiful aesthetic, they also reduce glare.

Artafex flangeless housing has been designed to simplify the flangeless mudding process dramatically. The dedicated flangeless housings can be installed using conventional drywall taping techniques to achieve a Level 5 finish.

Artafex Outdoor Lighting System

The Artafex Outdoor Lighting System includes hand-selected outdoor lighting fixtures designed to elevate residential landscapes. Painting with light to focus attention and to accentuate the natural beauty of the great outdoors elevates the everyday experience of a homeowner’s backyard. Fixtures are designed to see the light, not the fixture. The light quality and projection go further. The low-field angle reflector design puts light where it’s wanted and eliminates hot spots near mounting. Fully adjustable Glare Shield provides additional shielding and focus control.

The intelligent design of the flexible swivel/lock system provides maximum rotation for exceptional adjustability and durability. The modular LED engine and lamp design ensures lights can easily change and adapt to any outdoor environment. Thoughtfully designed weep holes keep standing water and debris from affecting the performance. They’re easy to open and service, and they stay watertight.

With premium materials and years of design expertise, DMF lights withstand environmental effects and the test of time for lifelong performance. Machined from solid aircraft grade (6061-T6) corrosion-resistant aluminum, they are then anodized and powder-coated to create a highly durable, marine-grade finish that is IP67-rated for water immersion and dust protection. Every fixture is tested before shipment for water tightness and light quality.

Integrators, designers, and homeowners can choose from Accent and Landscape applications, including Path and Bollard and Flood and Wall Wash options.
